Water Well Drilling Pipe

Name of product :Water well drilling pipe
Wall thickness:5.5mm /6.5mm/7.5/8.5mm/10mm
Standard:API SPEC 5DP、API SPEC 7 and ISO9001
Thread :API Reg 2 3/8”, 2 7/8”, 3 1/2” 4”, 4 1/2”, 5”, 5 1/2” ,6 5/8”
Raw materials:E75、X95、G105、DZ50、E75、R780、X95、G105、S135
External sizes:50mm、60mm、76mm、89mm、95mm、102mm、114mm、127mm、140mm、159mm.
Send Inquiry
Product Introduction

Water Well Drilling Pipe: Your Solution for Efficient and Reliable Water Well Drilling



Water is a precious resource that we should all work towards preserving. It is a basic need for all forms of life, making it essential to have access to clean and safe water sources. This is where water well drilling comes in handy, as it provides an efficient means of accessing underground water sources for various applications. However, for successful water well drilling, you need the right equipment, the most important of which is the water well drilling pipe.



If you are in the market for high-quality water well drilling pipes, look no further than our China-based manufacturing company. Our water well drilling pipes are designed to provide efficient and reliable water well drilling solutions for both professional and amateur drillers. Read on to learn why you should choose our water well drilling pipes.



1. Superior Quality



When it comes to water well drilling pipes, quality is paramount. You need a pipe that is capable of withstanding the rigors of drilling through different soil types and rock formations, as well as withstanding pressure during operation. Our pipes are made using high-quality raw materials, including steel, that are specially selected for durability, strength, and corrosion resistance. The pipes undergo rigorous quality checks at every stage of production to ensure that they meet or exceed industry standards. You can be assured of quality and reliability when you choose our water well drilling pipes.



2. Wide Range of Sizes and Specifications



Water well drilling requires different sizes and specifications of pipes to cater to varying soil and rock types. We understand this fact and provide a wide range of sizes and specifications to meet all your drilling needs. Our pipes are available in different lengths, diameters, and thicknesses, allowing you to choose the right pipe for your project.



3. Advanced Manufacturing Technology



We use advanced manufacturing technology to produce our water well drilling pipes. Our manufacturing process involves state-of-the-art machinery that ensures precision, accuracy, and consistency during production. We also employ skilled technicians who monitor the production process to guarantee that every pipe is manufactured to the highest possible standards.



4. Environmentally Friendly



Preserving the environment is essential, and we understand that drilling operations can have negative effects on the environment. To ensure that we minimize the environmental impact of our pipes, we use environmentally friendly raw materials and production processes. Our pipes are designed to have low emission rates, reducing the release of harmful gases to the environment.



5. Customizable



We understand that every drilling project is unique and requires specific equipment. That’s why we offer customizations to our water well drilling pipes. We can tailor-make pipes that match your specifications, ensuring that you get the exact pipe you need for your drilling project.



6. Competitive Pricing



We pride ourselves on offering competitive pricing for our water well drilling pipes. Our pipes are priced reasonably, allowing you to access high-quality pipes without breaking the bank. We also offer discounts for bulk purchases, making it even more cost-effective for merchants to buy from us.



Conclusion



In summary, our water well drilling pipes are the ideal solution for anyone looking for efficient, reliable, and high-quality water well drilling equipment. With superior quality, a wide range of sizes and specifications, advanced manufacturing technology, customizable options, and competitive pricing, our pipes are unmatched in the market. Choose us for all your water well drilling pipe needs, and experience the difference in quality, reliability, and efficiency. Contact us today to place your order.




The steel grade of drill pipe refers to the grade of drill pipe steel, which is determined by the yield strength of drill pipe steel. API (American Petroleum Institute) divides drill pipe steel into five grades: D, E, 95 (X), 105 (G), 135 (S). The higher the steel grade of the drill pipe, the greater the yield strength of the pipe, and the greater the various strengths of the drill pipe. In the strength design of drill string, it is recommended to improve the strength of drill string by increasing the steel grade instead of increasing the wall thickness.



The purpose of drilling pipe is to transport drilling mud to the drill bit and raise, lower or rotate the bottom hole device together with the drill bit. The drill pipe must be able to withstand tremendous internal and external pressure, distortion, bending and vibration. In the process of oil and gas exploitation and refining, drill pipe can be used for many times.



Water well drilling pipe is a kind of steel pipe with thread at the tail, which is used to connect the surface equipment of the drilling rig and the drilling and grinding equipment or bottom hole device located at the bottom of the drilling rig.



The center of the drilling pipe is hollow so that drilling mud can be pumped out through it and circulated through the annulus during oil drilling. The size, grade and number of well drill pipes depend on the design of the well to be drilled and the underground geological conditions.



We use surface nitriding treatment on the whole drill pipe, which not only extends the service life of the thread, but also extends the service life of the main body. We can also provide forged and friction welded drill pipes.



76 mm drilling pipe

Diameter(mm)

Length(mm)

Thread model

Weight(kgs)

Surface treatment

76

1000

API 2 3/8"

17

nitrogen treatment

76

1500

API 2 3/8"

22

76

2000

API 2 3/8"

26

76

3000

API 2 3/8"

35

89 mm drilling pipe

Diameter(mm)

Length(mm)

Thread model

Weight(kgs)

Surface treatment

89

1500

API 2 3/8"

28

nitrogen treatment

89

2000

API 2 3/8"

34

89

3000

API 2 3/8"

46

89

6000

API 2 3/8"

88

102 mm drilling pipe

Diameter(mm)

Length(mm)

Thread model

Weight(kgs)

Surface treatment

102

1500

API 2 7/8"

37

nitrogen treatment

102

2000

API 2 7/8"

46

102

3000

API 2 7/8"

64

102

6000

API 2 7/8"

118

102 mm drilling pipe

Diameter(mm)

Length(mm)

Thread model

Weight(kgs)

Surface treatment

102

1500

API 2 7/8"

38

nitrogen treatment




Why choose us :


  • We are a manufacturer for drill pipe , drill rigs and drill bits, located in Hunan ,China.

  • With professional technicians and advanced production equipment , providing high quality of products.

  • Passed the ISO certification , carried out production in strict accordance with ISO standards.

  • OEM and ODM services are available.

  • We have professional customer service personnel and 24 hours online services.

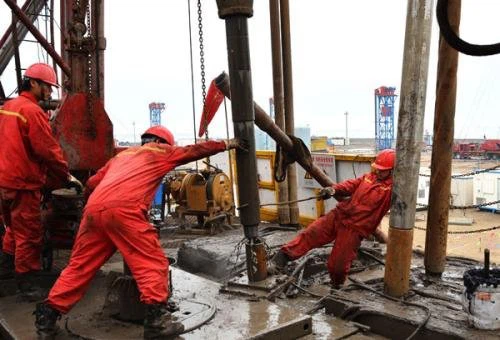

Application case



Why choose us?

  • We have a team of experienced professionals who are dedicated to ensuring that our Drilling Accessories products meet the highest standards of quality and safety.
  • Service innovation, technological innovation, management innovation and organizational innovation are the themes of the company's sustainable development. The company encourages employees' innovative behaviors and strives to create an organizational atmosphere and mechanism that is conducive to innovation, such as unity, relaxation, and harmony.
  • Our factory is equipped with state-of-the-art machinery and skilled workers to ensure the quality of our Drilling Accessories products.
  • Our company has a professional production base and a senior professional technician and management team who love the industry ofWater Well Drilling Pipe and have worked in the industry for many years. Over the years, the company has been focusing on research, introduction, digestion, and absorption of advanced technology and quality at home and abroad, providing customers with advanced and cost-effective products.
  • Our Drilling Accessories products are designed to withstand harsh environments and perform consistently under challenging conditions.
  • The company eliminates outdated production capacity, actively organizes technological transformation, and strives to develop new products.
  • Our customer service team is available 24/7 to provide assistance and support to our customers.
  • In recent years, we have actively introduced the refined management mode to promote the optimization and upgrading of Water Well Drilling Pipe quality, operation management and brand management.
  • Our Drilling Accessories products are delivered on time and in the most efficient way possible.
  • We are carrying out a comprehensive strategic layout, accelerating the process of product introduction, expanding the scale of our business and continuing to deepen the market operation of our products.
