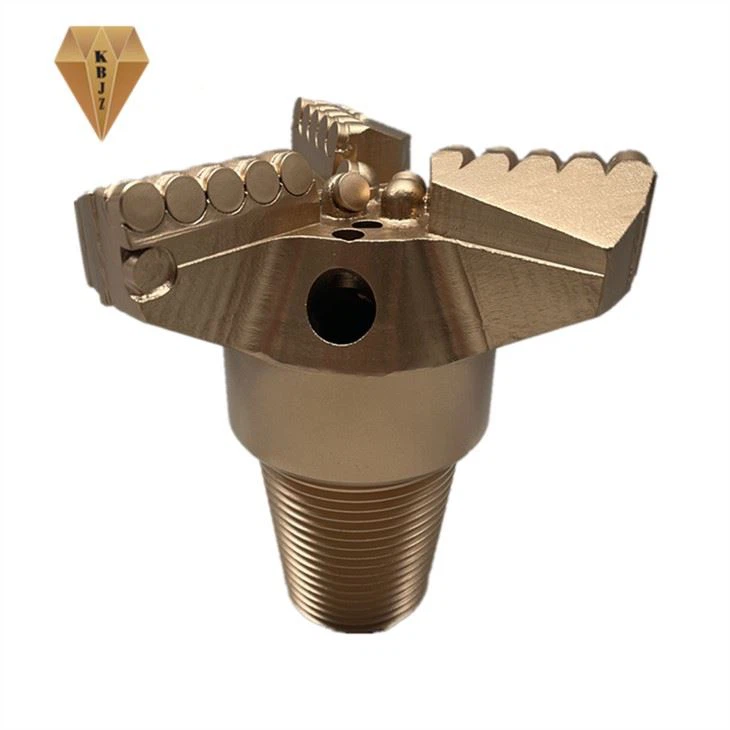

3 Wings Pdc Drag Bits
Product type：PDC bit
MOQ：1 piece
Process ：forging
Diameter：45mm~600mm
Size ：can be customized
PDC cutters：13mm,16mm,19mm
Type of machinery：drilling equipment
Color ：green ，red，black，golden，blue etc.
Application: drilling, mining, coal mine, geological drilling
Raw materials：High quality steel and diamond tools, diamond
Thread：API REG IF 2 3/8 , 2 7/8 , 3 1/2 , 4 1/2 , 6 5/8
3 Wings Pdc Drag Bits – The Ultimate Solution for Efficient and Reliable Drilling
As a leading manufacturer of drilling equipment and accessories in China, we take great pride in offering our customers the latest and most advanced tools for all their drilling needs. Our 3 Wings Pdc Drag Bits are one such product that has been designed to provide exceptional performance and reliability, making it a popular choice among drilling contractors and companies across the globe.
But why should you choose our 3 Wings Pdc Drag Bits over other similar products on the market? In this product introduction, we'll highlight some of the key features and benefits that help set our product apart and make it a must-have for anyone looking for high-quality drilling equipment.
1. Advanced PDC Technology
At the heart of our 3 Wings Pdc Drag Bits lies our advanced PDC (Polycrystalline Diamond Compact) cutting technology. This technology utilizes ultra-tough and wear-resistant diamond cutters that are carefully designed to deliver superior results even in the most challenging drilling environments.
Compared to traditional drag bits, PDC drag bits are known for their greater efficiency and reduced wear and tear, resulting in lower overall drilling costs and enhanced productivity. With our 3 Wings Pdc Drag Bits, you can enjoy the best of both worlds – unmatched performance and long-lasting durability.
2. Three-Wing Design
Another key feature that sets our 3 Wings Pdc Drag Bits apart is their three-wing design. This design helps to distribute the cutting force evenly across three blades, allowing for greater stability and control during drilling operations. The result is a smoother and more efficient drilling experience that minimizes the risk of damage to both equipment and personnel.
3. Optimized for Soft to Medium Formation
Our 3 Wings Pdc Drag Bits have been carefully engineered to provide optimal performance in soft to medium soil formations. This makes them ideal for a wide range of applications, including water well drilling, geothermal drilling, and mining operations.
With our 3 Wings Pdc Drag Bits, you can expect to achieve faster drilling times, higher penetration rates, and reduced drilling costs, all of which ultimately contribute to a more successful and profitable drilling project.
4. Customizable Options
We understand that every drilling project is unique, and that's why we offer a range of customizable options for our 3 Wings Pdc Drag Bits. Whether you need a specific size, shape, or design, we can tailor our product to meet your specific needs and requirements.
We also provide personalized support and assistance to ensure that you get the most out of our product. Our experienced team of professionals is always available to answer your questions and provide guidance on the best drilling techniques and practices.
In Conclusion
In summary, our 3 Wings Pdc Drag Bits represent the ultimate solution for efficient and reliable drilling operations. With advanced PDC technology, a three-wing design, optimized performance in soft to medium formations, and customizable options, our product is the ideal choice for any drilling contractor or company looking to take their operations to the next level.
We stand behind our product 100% and are committed to providing our customers with the best possible drilling experience. So why wait? Contact us today to learn more about how our 3 Wings Pdc Drag Bits can help you achieve your drilling goals and take your business to new heights.
3 wings PDC drag drill bits are also called blade drill bit, and diamond composite cutter is embedded on the blade. They are usually designed for soft to medium hard formations such as sand, clay or bedrock, shale, limestone, etc. Their uses include well drilling, mining, geothermal, environmental and exploration drilling.
3 wings PDC drag bits usually have 3 wings and 4 wings, but our factory can manufacture 5 wings, 6 wings or more according to your drawings or samples. Many special designs are available upon your request.
We can customize various sizes of 3 wings PDC drag bit with special threads including male thread and female threads according to customer needs, so that PDC drag bits can be directly connected to drill pipes for use.
Before using the drill bit, checking whether the screw thread and teeth are in good condition, ensure that there is no dust inside, the air outlet is smooth, and the screw thread is lubricated. The drill bit can be used only after it is connected by lifting and rotating.
Our 3 wings PDC drag bits have high quality and affordable prices, and are sold all over the world, such as Russia, Nigeria, Ethiopia, Germany, Spain, the United States, the Philippines, Malaysia, South Africa, Australia and other countries.
Regular size table for PDC drag bit :
| Size（inch） | Size （mm） | Thread |
2-3/8 | 60 | Non standard |
2-1/2 | 63.5 | Non standard |
3 | 76 | Non standard |
3-1/2 | 89 | Non standard |
3-7/8 | 98.4 | REG 2-3/8" |
4 | 102 | REG 2-3/8" |
4-1/4 | 108 | REG 2-3/8" |
4-5/8 | 117.5 | REG 2-7/8" |
5-1/4 | 133 | REG 2-7/8" |
5-5/8 | 142.9 | REG 3-1/2" |
5-7/8 | 149.2 | REG 3-1/2" |
6 | 152 | REG 3-1/2" |
6-1/8 | 155.6 | REG 3-1/2" |
6-1/4 | 159.3 | REG 3-1/2" |
6-1/2 | 165 | REG 3-1/2" |
7-1/2 | 190.5 | REG 4-1/2" |
7-5/8 | 193.7 | REG 4-1/2" |
7-7/8 | 200 | REG 4-1/2" |
8-1/2 | 215.9 | REG 4-1/2" |
8-5/8 | 219 | REG 4-1/2" |
8-3/4 | 222.3 | REG 4-1/2" |
9-1/2 | 241.3 | REG 6-5/8" |
9-5/8 | 244.5 | REG 6-5/8" |
9-3/4 | 247.7 | REG 6-5/8" |
9-7/8 | 250.8 | REG 6-5/8" |
10-5/8 | 270 | REG 6-5/8" |
Packing ：in wooden case or carton or pallet.
Shipment: regular products will be delivered in two days, batch products will be subject to quantity, and customized products will be subject to production scheduling.
We have freight forwarders who have cooperated with us for many years, and can solve the problem of delivery in a timely and rapid manner. Express, sea, air, land transportation are available for customers to choose from.
Multiple payment methods : TT , LC , Western union, Credit Card , Paypal etc.
Why choose us ：
With 12 years of production experience and many years of experience in foreign trade and export, we can communicate with customers in a timely manner to solve problems in the process of purchasing.
We have advanced production equipment, CNC machine tools, multiple CNC machining centers,milling machines, drilling machines, and professional production lines.
Our products are complete , including drill rigs , DTH hammer bits , tricone bits , pdc bits , impregnated diamond core bits , drill pipe , geological pipe casing etc. , providing one-stop service.
OEM and ODM services are available.
Compensates misalignment and deflections
Our products are strictly inspected and tested on each order before packaging.
Application case
Why choose us?
- We provide a range of PDC drag bits that are designed to suit different drilling applications and rock formations.
- The company's core technology and product applications have applied for a number of national patents, and the products have achieved automation, standardization, and large-scale manufacturing processes.
- Our commitment to quality and customer satisfaction has made us a trusted supplier of high-quality PDC drag bits.
- We are constantly improving our production technology and introducing new machines to produce the best 3 Wings Pdc Drag Bits with the fastest efficiency and the highest quality.
- We have a wide range of PDC drag bits to meet different drilling needs and rock formations.
- While focusing on the development of its own brand, the company also actively devotes itself to social welfare undertakings.
- Our PDC drag bits are made from high-quality materials to ensure durability and longevity.
- Our 3 Wings Pdc Drag Bits is known for their quality and robustness and has proven reliable in the demanding environments.
- You can count on us to provide superior PDC drag bits that will exceed your expectations.
- Perfect incentive system can enhance the cohesion of the enterprise, improve staff morale and work performance, so as to bring better benefits to the enterprise.
